DTF Material
Special for DTF Printing

Parameter

Size: 30cm/33cm/60cm/120cm*100m, A3, A4,A3+
Thickness: 75u / 95u ( Cover Coating )
Core: 3inch/2inch

Feature

Hot film transfer printing white ink has bright color, stable quality, excellent performance, environmental protection, non-toxic, simple process, no steaming treatment. And Ink also has high suitability, wide applicability to transfer printing plant, pyrograph factory, all kinds of clothing design of transfer printing trademark, transfer printing pattern, washing label, customized DTG printing etc., also can be used for garment T-shirts, fabrics, cloth and other textiles for white digital inkjet printing, especially suitable for white ink heat transfer printing, it’s free of engraving, hollowing out and cutting work, can use white ink direct pyrograph process technology.

• Technical Specifications

Size: 30cm/60cm/120cm*100m, A3, A4
Both sides mattee coating
Smooth and clean surface
90μm thickness

Applicable ink: pigment ink
Scratch resistant, non-fading, washable
Non-slip, no oil, no sticking, no static, uniform coating, easy to peel

Digital heat transfer film is divided into :
 single side
 double sides,
 performance as hot film,
 performance aswarm film
 performance ascold film.

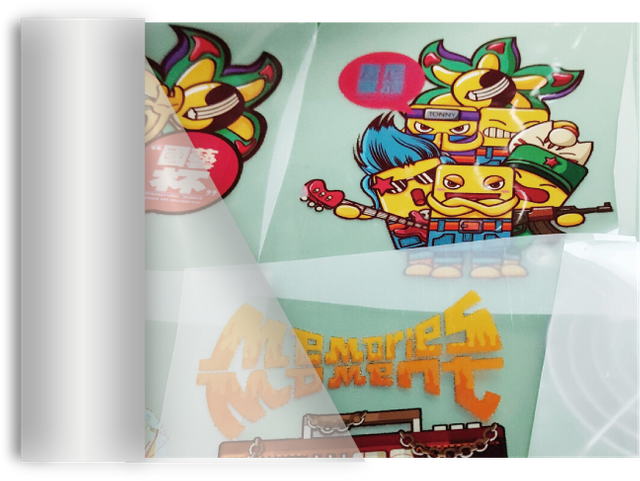

For hot film, the appearance of the pattern and the cloth pattern are more natural when tear film off immediately after printed.

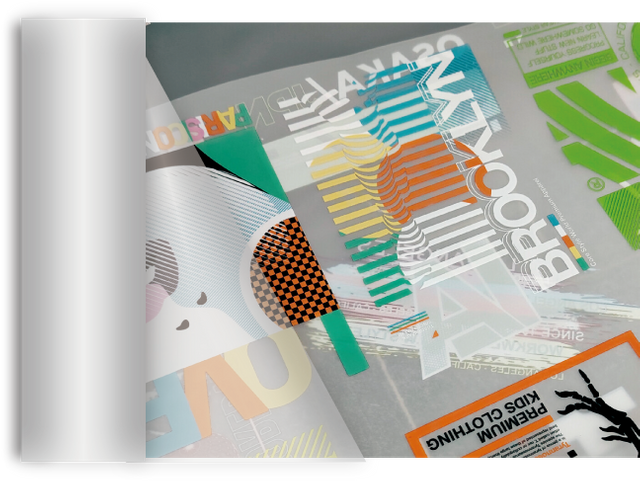

For cold film, the appearance of the pattern is relatively smooth, but the sense of paint and leather is aggravated when tear film off after temperature down.

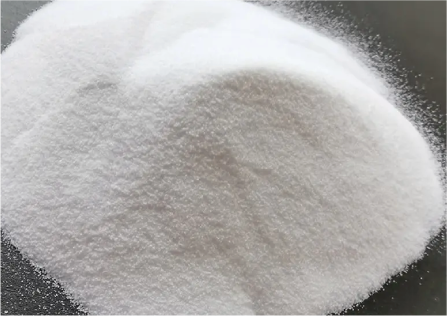

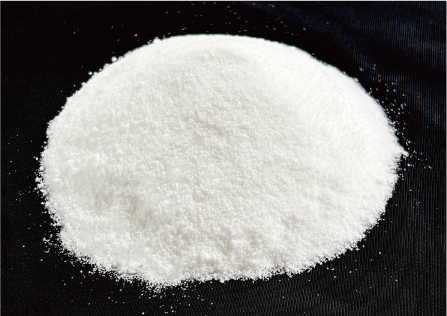

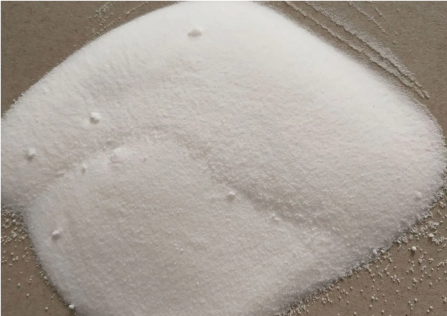

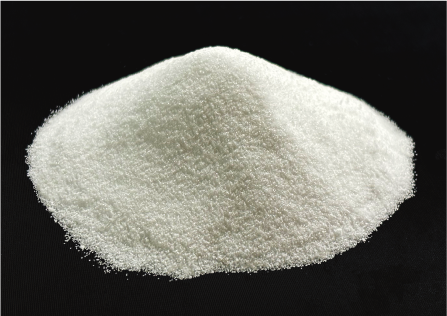

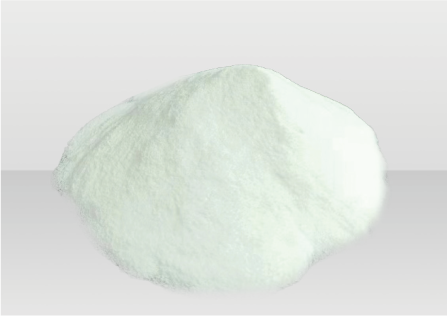

• Powder Classification

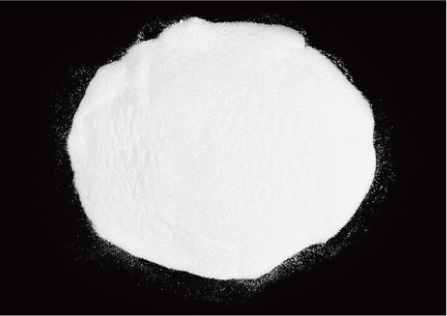

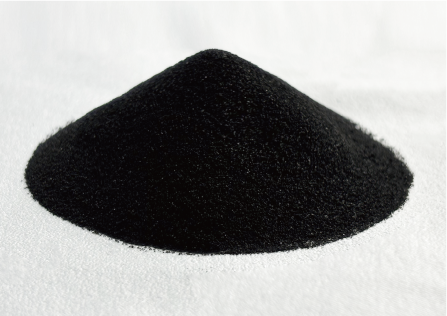

There are coarse 80 mesh, middle 120 mesh, fine 200 mesh, we can match the specific application according to customer requirements

 Washing marks with small words can match fine powder and hot film.

 Large area pattern can choose warm and cold film and coarse powder.

 For the general pattern, hot melt glue powder recommended to
choose medium - fine powder.

 Normally, hot melt powder should be sealed, in order to avoid affecting
the use effect of shaking powder.

Due to the difference of printer, ink, ICC curve of board and substrate fabric of each user, we can develop a perfect heat transfer film plans according to our own condition.

 If the film surface absorbs moisture or dust caused by long-term exposure, the exposed section should be cut off and then printed again, in order to avoid affecting our judgment. Handle the film gently, avoid compression and contusion, pay attention to the strength and Angle when cutting the film, in order to avoid making deep scratches.

• Method and Steps

1. The pattern to be applied through photoshop or other image processing software to complete the preprocessing, then input into the digital printing software.

2. The printer should make the best match between the consumables such as the matching hot transfer film, ink, and image color ICC and the software. The printed pattern is guaranteed to be bright and stable.
 Printing humidity condition should remain 50%-60%;
 Indoor temperature should remain 20-30℃;
 The temperature of printer rear heating board should remain 38℃~45℃.

3. After printing the pattern, let the film flow into the automatic powder shaker machine.
 Due to ink and other reasons, please pay attention to climate change, we can be turned on the front and rear heating function to ensure stable quality during low temperature in winter.Baking machine connected heating board is also recommended to 40-50 degrees.

4. Generally, the baking speed after shaking powder is appropriate to match the printing speed. The temperature is best to be warm first and then hot. It is appropriate to
control the temperature of the film surface between 70 and 90℃.

5. After baking, the finished film with pattern should be printed on the surface of substrate clothing and other materials by heat transfer printing machine as early as possible.
 Heat printing temperature: 140-160℃, it can be adjusted by the physical properties of hot melt powder;
 Heat printing time: 7sec to 10se;
 Heat printing pressure: 5--7KG;
 According to the different fabric matching

  • Q Flaking powder

    A Reasons

    The blank place powder around the pattern sticks the coating after heat transfer printing

    Solutions

    May due to the heat transfer printing pressure is too high, which makes the film ink absorbing layer damage peeling or fabric surface size easy to stick the coating. Generally, as long as the temperature and pressing time can meet the requirements of sticking firmly, it can be easily solved when adjust the pressure as small as possible down
  • Q Oily or damp

    A Reasons

    Baking dried patterns or pasted and transferred patterns become oily and damp

    Solutions

    It belongs to the phenomenon that the glue is not baked thoroughly, the water and glycerin in the ink cannot be thoroughly baked and then reversed. Generally speaking, single sheet operating version with 120 degrees low temperature for a long time through it best. As powder is limited by the length of the powder machine, so we can try to raise the connected board appropriate high temperature to make the water and glycerin evaporation in advance might also help
  • Q Powder holes

    A Reasons

    Ink water and glycerin boiling evaporation with high temperature and short time baking dried, which pulls holes out of the coating and film

    Solutions

    It' better to give priority to medium and fine powder, a little coarse powder or even no coarse powder, it works best when baking dried in the low and high temperature section for a long time, it works best when baking dried in the low and high temperature section for a long time, it can be gradual to dry oil and water and melt glue thoroughly, but no violent reaction. The resulting film is flexible, elastic, smooth and dry. If the powder machine begins with a slightly poor conditions, it's necessary to make use of the function of preheating chopping board to heat and steam away some water in advance to reduce the burden, dry them then shake powder.
  • Q Powder shaken unclear

    A Reasons

    Wet weather, humidity, strong static electricity, it needs to check when the edge of the pattern is unclean.
    1、 Whether high humidity or low temperature
    2、Whether the strength of powder shaking machine is insufficient
    3、Whether the printing interval is too long without powder caused by drying glycerin diffusion
    4、 Whether ink misting on heads

    Solutions

    If it is found that the pressure wheel position or large blank area shaking is not clean, it should be electrostatic influence or powder damp or too fine, you can take measures as appropriate.
    Generally, increasing the temperature of the heating board after printing and shake powder machine connected board can reduce the edge powder shaken unclear.
  • Q Ink flow

    A Reasons

    1、It becomes easy to flow ink where has powder impurities or crush wounds
    2、The heating board is not open after printing

    Solutions

    If the ink flow is due to the poor absorption, we can try 1, reduce the proportion of white ink setting, appropriate to reduce the amount of white ink 2, increase the temperature of the printer heating board can also improve the pass rate 3, board heating can help ink activation and then reduce ink flow phenomenon
Film Sample For Free
Hesitate to order our DTF pet film?
Maybe you can take a sample test first.
We provide free film samples
for our favorite customers.
Applications of DTF Material
Commonly used products such as T-shirts, hats, backpacks, lanyards, shoes and more to create unique fashion pieces. It can also be used in denim clothes, non-woven bags, gift bags, pearl clothing, baseball caps, fabric gift boxes, etc. Make your travel outfit unique.
 T-shirt
 Canvas
 Backpacks
 Shoes
Baseball Caps
 Denim/Jeans
 Hoodies
 Lanyards
 Gift Bags
Fabric Gift Boxes
 Sweaters and more...
Frequently Asked Questions

What is DTF transfer printing?

The DTF(direct to film) process is as simple as its name implies-printing on the film and directly transferred to the fabric. The most prominent factor that makes this process worthwhile for more people is the freedom to choose almost any fabric. Whether it is polyester, cotton, silk or synthetic fibers such as man-made fibers or terry cloth, the DTF printing process will definitely do magic to them

What are the differences between UV DTF printers and DTF printers?

Similarities between UV DTF printers and DTF printers: Both DTF and UV DTF printers call for the design to initially be printed on a PET film before being transferred to the item.
Differences: UV DTF printers use a different type of ink than DTF printers do. Unlike DTF printers, UV DTF printers employ UV ink.

DTF Printer vs. DTG, which is better?

DTF printing is more durable.
DTF printers transfer designs onto garments via a special film, while DTG printers print directly onto the fabric.
DTG printers are best for natural fibers, while DTF printers can print on a wider range of materials.
DTF printers generally produce more vibrant colors on dark fabrics, but DTG printers are faster for individual garments.

What are the differences between UV DTF printers and UV printers

UV printers and UV DTF printers both use UV heating technology and UV ink, which is a similarity. As a result, both printers can generate prints that are of a high enough caliber.
UV printers work directly on an object’s surface, which is where they differ. The UV printer might not deliver adequate results when printing on an object with a sloped surface.
DTF Accessories

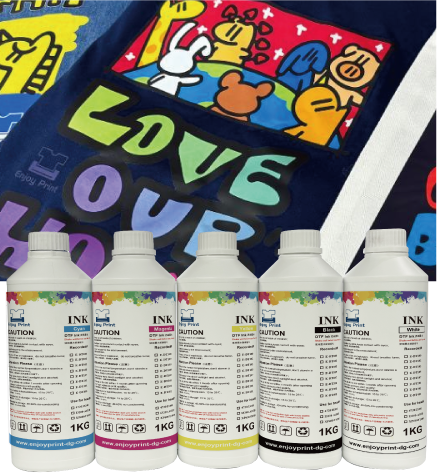

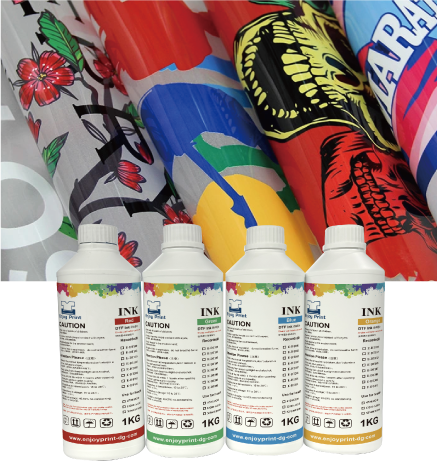

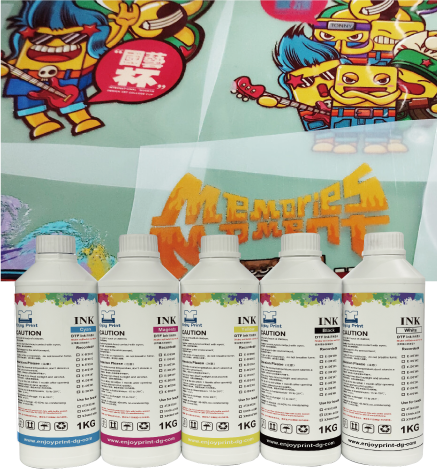

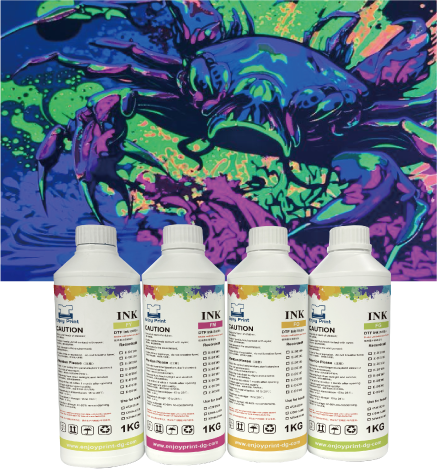

DTF Accessories inculding DTF textile inks, DTF shaking powder and PET Film with high quality accessories for DTF printing with affortable price.
