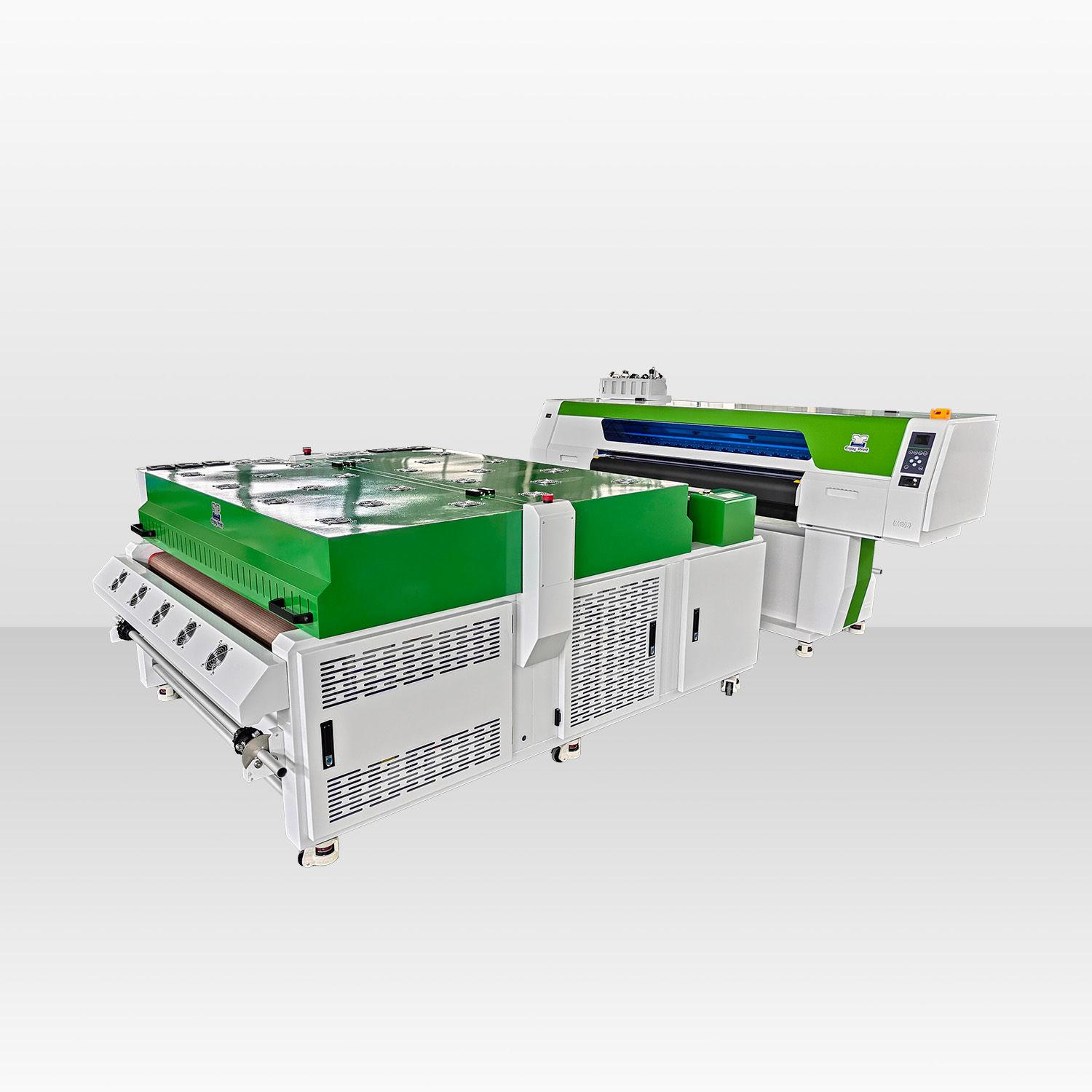

E-1204 DTF Printer & Shaker Enjoyprint

HIGH VOLUME DTF PRINTING SOLUTION

Parameter
Print Head: 4/5 print heads.
Max Print Size: 1200MM Print Width.
Colors : CMYK + W / CMYK + W + W
Max Printing Width : 1200mm
Printing Ink ：Pigment Transfer Ink
Board : Hoson Board
Print speed：

720x1200dpi - 4pass 72m²/h

720x1800dpi - 6pass 48m²/h

（*Five Print Heads Speed）

Feature
Digital PET Film Printing Machine with Powder Shaking integrates vinyl powder coating and drying into one machine. When the film/vinyl is dried out, it can be used to transfer print onto the garment.

Availability:



Inquiry Add to Basket PDF Export

Model:
E-1204
Brand:
Enjoyprint

Printer Heads

Epson Inkjet Head - i3200-A1

The Epson authorized iI3200-A1 Water is a cost-effective 1.33inch-wide MEMs head series providing high productivity and high image quality with (600 dpi/colour) high-density resolution. This printhead is suitable for water based inks. Ink ejection of up to 4 colours realize with high resolution .PrecisionCore print head has proven high durability and extended service life by Epson's industrial printers

Product Specifications:
Product name	EPSON i3200-A1
Ink Type	Aqueous
Type	PrecisionCore MicroTFP printhead
WidthxDepthxHeight	69.1x 59.4 x 35.6 mm
Number of Nozzle	3200
Nozzle pitch/nozzle row	1/300 inch
Nozzle rows	8 rows
Nozzle Resolution	300 npi /row 600 npi/2 rows
Max. number of colour inks	4 colours
Droplet volumes	6 pl (Single mode)
Droplet volumes	6.3,1 2.3 pl (Multi mode)

* Five I3200 Print Heads Speed (4/5 heads optional)

360x1800dpi - 4pass 72 m²/h

720x1200dpi - 6pass 48 m²/h

Technical Specifications

T-shirt Digital Heat Transfer Printing Machine
Model		E-1200 DTF MAX Power Shaker
Print Head		4/5 Print Heads
Printing Technology		Piezoelectric Inkjet
Acceptable Media	Width	1200 mm
Acceptable Media	Thickness	Maximum 39 mil(1 mm)
Printing Width		1180 mm
Ink Cartridges	Type	Transfer Pigment Ink
Ink Cartridges	Color	CMYK + W
Applicable Medium		Transfer film
Color Manage		ICC or density curve
Media Heating System		Powder & color fixing machine
Interface		RJ-45/LAN
RIP Software		Main top & PhotoPrint
Power Supply		50HZ/60HZ, 220V/110V/10A
Environment	Temperature	20℃ to 28℃
Environment	Humidity	65% to 75%
Printer Dimensions(With Stand)		L2558mmW835mmH1315mm
Packing Dimensions		L2630mmW930mmH1400mm
Weight		300kg

Shaking Powder and Color Fix Machine
Model	A-1200 MAX Power Shaker
Media Width	0-1200mm
Applicable Medium	Nylon, Chemical Fiber, Cotton, Leather, Swimwear, Wetsuit, PVC, EVA, etc.
Powder Control	Powder shake control, powder control, powder direction and volume control
Heating & Drying Function	Multi-stage heating system, drying, cold air fan function
Rewind Function	Automatic induction winding
Electrical Parameters	Rated Voltage: 220V Rated Current: 40A
Electrical Parameters	Rated Power: 6.6KW Power Consumption: 6Wh
Packing Size & Weight	2290* 2000* 1130mm
Powder Shaker Size	237019051000mm （Built-in smoke filter）

Working Process

Working Process

Design Pattern

Use photoshop, illustrator or other software to design your pattern.

Print Your Design

The printer parameters in the RIP software and use our printer and ink to print your pattern.

Powdering

Turn on the switch of the powder shaking machine, the machine will automatically powdering, and dry and fix the color.

Heat Press

Use a heat press machine, set the temperature to 180 degrees, and time 15 seconds to transfer.

Required Accessories

Features

Feature of A-1200 MAX
AINKJET DTF Super HIGH VOLUME DTF PRINTING SOLUTION

ENJOY PRINT DITF is carefully designed to reduce maintenance to a minimum. With popular RIPsoftware each print will be produced in a quality waybeyond any competition, but still ainkjet dtf every aspect of the printwill be optimized in order to make it cost effective.

• More Intelligent

• Low Maintenance

• High volume production

• Self preservation function

• More convenient operation

• With upgradeable options

Feature of A-1200 MAX

Latest technology of DTF , Want some quality clothing shirt? Try our DTF Print, same as silkscreen.

Sprinkler free installation

After you receive the printer, there is no necessaryto install the print heads. After installing the inkand simple debugging, it can be printed directly.
Automatically moisturize online

To prevent the ink from clogging the heads, moisturizer at regular intervals to keep the heads cleanand moist. Online humidification system. which can keep the best working condition of the.
Upgraded Damper Heating

Upgraded Damper Heating, Independent control switch, heating on all sides to maintain nozzle status, improve ink fluency, stable output.
Nozzle broken holecompensation technology

The printer can automatically monitor the printing processduring the printing process, and will compensate if there isan problem of printing leakage to ensure the perfect output.
Tension bar media feeding system

The intelligent tension bar film feeding system makesfeeding more accurate and stable.
Electric pinch roller control systems

The electric control pinch roll, the PET fim evenly stressed.feeding more accurate, one-button easy operation.
THK mute guide

Imported high quality THK guide. Highly stable printingwith low noise and with longer life ,the first choicefor high-end inkjet printers.
Powder Control System

Better control the precise amount of powder, avoid unnecessary waste, reduce the number of powderreturn & powder pouring, reduce manual operation costs.
White ink circulation & Ink bottle automatic shaking

White ink bottle stirring device, auxiliary white ink circulation device, greatly improves ink fluency and increases the service life of the print heads

Application

Applications of DTF Printer

Commonly used products such as T-shirts, hats, backpacks, lanyards, shoes and more to create unique fashion pieces. It can also be used in denim clothes, non-woven bags, gift bags, pearl clothing, baseball caps, fabric gift boxes, etc. Make your travel outfit unique.

✔ T-shirt ✔ Denim/Jeans
✔ Canvas ✔ Hoodies

✔ Backpacks. ✔ Lanyards

✔ Shoes ✔ Gift Bags

✔ Baseball Caps ✔ Fabric Gift Boxes
✔ Sweaters and more......

dtf printer inkjet printer film directly printing powder shaker printer digital dtf dtf film printing dtf powder shaker dtf printing dtg

DTF Accessories

DTF Accessories inculding DTF textile inks, DTF shaking powder and PET Film with high quality accessories for DTF printing with affortable price.

/DTF PET Films

DTF film can be transferred on a wide range of fabrics. Capable of printing to shirts, sweaters, hoodies, pullovers, canvas, denim, and more! Our DTF films have excellent ink absorption for high-precision printing. Use our film you will achieve high-quality, breathable, and smooth prints.
/DTF Textile Prinitng Ink

DTF textile printing ink is highly compatible with print Epson heads. You can directly print your designs on different textiles and fabrics using Direct to Film Ink technology.ORIC offers different colors of DTF inks such as W, Y, K, M, C, Or, Gr, and also fluorescence pink & fluorescence yellow.
/DTF Hot Melt Powder

Unlike DTG technology, DTF requires no pre-treatment.The most important factor is DTF Powder. DTF powders are specially designed to use with DTF printing process. Our DTF powders are slow drying and easy to cold tear. Which will help you get excellent transfer printing results.

Additional Value

Year Warranty

Within 1 year from the date of purchase, if the machine has non-man-made damage, you can enjoy free warranty service.
Online Technical Support

The expert team will serve you online and solve any problems you encounter for free.
Inkjet Printer Starter Kit

Starter kit pack including complete set of test inks, commonly used replacement parts，and the user's guide, installation Video Instructions.
Dealer' s Team Training

Regularly provide our dealers , technical training of new models, application solutions training, sales guidance training.
