Y3011PM

Y3011PM

Technical Highlights

Printhead: F1080
Max Print Size: 300mm width
Print Speed: 6PASS: 1.78㎡/H
Ink Type: CMYK + W

Key Features

Built-in Purification Filter
Chip Ink Cartridge
Automatic Powder Recycling System
Smart Touchscreen Control
Integrated Structural Design
Mobile APP Printing Control

Availability:



Inquiry Add to Basket PDF Export

Model:
Y3011PM
Brand:
Enjoyprint

Printer Heads

Epson Inkjet Head F1080

Authorized Epson F1080 Printhead, specifically designed for DTF printers:

Enhanced Printing Performance: The F1080 / XP600 printhead is engineered by Epson to deliver exceptional print quality and vibrant colors. With its advanced technology and precise ink droplet placement, it enables sharp details and smooth gradients, resulting in professional-level prints.

Genuine Epson Product: Epson printheads ensure compatibility, reliability, and consistent performance. By using the authentic Epson F1080 / XP600 printhead, you can trust in its quality and compatibility with your DTF printer.

The Genuine Epson F1080 Printhead, designed to deliver exceptional print quality and reliable performance. Enjoy the benefits of using an authentic Epson product and unleash the full potential of your DTF printer for outstanding prints.

Product Specifications:
Product name	F1080
Ink Type	Aqueous
Type	PrecisionCore MicroTFP printhead
WidthxDepthxHeight	84.9 x 57.2 x 46.2 mm
Number of Nozzle	1080
Nozzle pitch/nozzle row	1/180 inch
Nozzle rows	6 rows
Nozzle Resolution	180 npi /row 360 npi/2 rows
Max. number of colour inks	6 colours
Droplet volumes	4.5,9，20，40 pl (Multi mode)

Technical Specifications


Model	A3 Desktop DTF Printer
Printing Techonlogy	Micro Piezo Inkjet Printing
Print Head	F1080 Print Heads
Acceptable Media	Width	300mm
	Material	PET Film
Printing Width	≤ 300 mm
Ink Cartridges	Type	Water-based ink
	Capacity	W 210ml CMYK 120ml
	Color	CMYK + W
Accuracy and Printing Speed	624dpi × 2160dpi	6PASS: 1.78 m²/H
	624dpi × 2520dpi	7PASS: 1.47 m²/H
RIP Software	RIIN
Power Supply	AC 110V/220V, 50/60Hz
Environment	20-28°C
	60-75% RH
Printer Dimensions	886mm775mm643mm
Packing Dimensions	986mm875mm743mm

Features

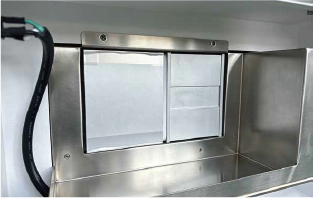

The equipment is equipped with a built-in purification filter to filter and purify smoke generated during the baking process, improving the working environment and reducing exhaust gas leakage.

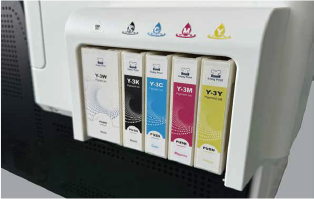

Intelligently identifies consumables and monitors ink volume in real time to protect printheads and stabilize printing colors.

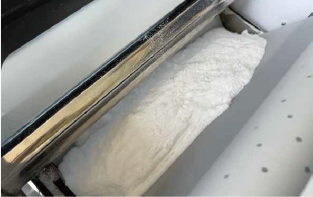

Spilled powder can be automatically recycled, greatly reducing the frequency of manual powder refilling, cutting repetitive labor opera tions, simplifying workflows and boosting production efficiency.

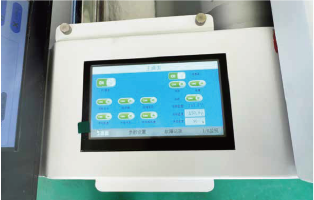

Controlled via an intelligent touchscreen. Print jobs can be set with one click. The operation is intuitive, convenient and easy to learn.

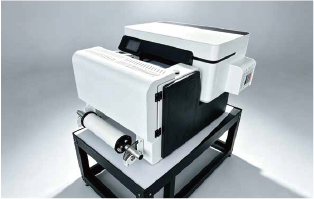

Adopts an integrated design combining printing, powder shaking and baking. The centralized structure simplifies daily maintenance and lowers operation & maintenance costs.

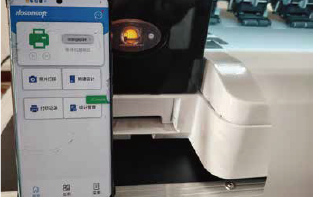

Direct operation through mobile APP. No RPI plotting required. Enjoy one-click printing.

Application

Applications of DTF Printer

Commonly used products such as T-shirts, hats, backpacks, lanyards, shoes and more to create unique fashion pieces. It can also be used in denim clothes, non-woven bags, gift bags, pearl clothing, baseball caps, fabric gift boxes, etc. Make your travel outfit unique.

✔ T-shirt ✔ Denim/Jeans
✔ Canvas ✔ Hoodies

✔ Backpacks. ✔ Lanyards

✔ Shoes ✔ Gift Bags

✔ Baseball Caps ✔ Fabric Gift Boxes
✔ Sweaters and more......

dtf printer inkjet printer film directly printing powder shaker printer digital dtf dtf film printing dtf powder shaker dtf printing dtg

DTF Accessories

DTF Accessories inculding DTF textile inks, DTF shaking powder and PET Film with high quality accessories for DTF printing with affortable price.

/DTF PET Films

DTF film can be transferred on a wide range of fabrics. Capable of printing to shirts, sweaters, hoodies, pullovers, canvas, denim, and more! Our DTF films have excellent ink absorption for high-precision printing. Use our film you will achieve high-quality, breathable, and smooth prints.
/ DTF Textile Printing Ink

DTF textile printing ink boasts excellent compatibility. You can directly print your designs on different textiles and fabrics using direct to Film Ink technology. ENJOYPRINT offers different colors of DTF inks such as C, M, Y, K, W, Lc, Lm, Re, Gr, Bl, Or and also fluorescence ink.
/ DTF Hot Melt Powder

Unlike DTG technology, DTF requires no pre-treatment.The most important factor is DTF Powder. DTF powders are specially designed to use with DTF printing process. Our DTF powders are slow drying and easy to cold tear. Which will help you get excellent transfer printing results.

Additional Value

Year Warranty

Within 1 year from the date of purchase, if the machine has non-man-made damage, you can enjoy free warranty service.
Online Technical Support

The expert team will serve you online and solve any problems you encounter for free.
Inkjet Printer Starter Kit

Starter kit pack including complete set of test inks, commonly used replacement parts，and the user's guide, installation Video Instructions.
Dealer' s Team Training

Regularly provide our dealers , technical training of new models, application solutions training, sales guidance training.
