YXP IN604 DTF MAX

HIGH VOLUME DTF PRINTING SOLUTION

Parameter
Print Head:4/6 I3200-A1 print heads
Colors : CMYK/CMYK+RGBO
Feature
ENJOYPRINT One-stop Efficient Printing: Newly upgraded IN604 DTF MAX integrated printer combines powder-shaking, digital cutting & dual-station heat pressing; it prints, powders and cures fluorescent/transition-color & special PET films in one line for vivid, durable colors.

Multiple Applications: Suitable for clothing, T-shirts, hats, backpacks, lanyards, shoe accessories & luggage, enabling unique item creation.

High Printing Precision: Optional 4/6* i3200-A1 printheads, supports multi-precision modes for diverse needs. Uses popular RIP software to ensure top printing results and cost optimization.

Availability:



Inquiry Add to Basket PDF Export

Model:
YXP IN604 DTF MAX
Brand:
Enjoyprint

Printer Heads

Epson Inkjet Head - i3200-A1

The Epson authorized iI3200-A1 Water is a cost-effective 1.33inch-wide MEMs head series providing high productivity and high image quality with (600 dpi/colour) high-density resolution. This printhead is suitable for water based inks. Ink ejection of up to 4 colours realize with high resolution .PrecisionCore print head has proven high durability and extended service life by Epson's industrial printers

Product Specifications:
Product name	EPSON i3200-A1
Ink Type	Aqueous
Type	PrecisionCore MicroTFP printhead
WidthxDepthxHeight	69.1x 59.4 x 35.6 mm
Number of Nozzle	3200
Nozzle pitch/nozzle row	1/300 inch
Nozzle rows	8 rows
Nozzle Resolution	300 npi /row 600 npi/2 rows
Max. number of colour inks	4 colours
Droplet volumes	6 pl (Single mode)
Droplet volumes	6.3,1 2.3 pl (Multi mode)

* Four I3200 Print Heads Speed (4/6 heads optional)

* CMYK

4*I3200 Print Heads Speed 2CMYK + 2W 25㎡/h

6*I3200 Print Heads Speed 3CMYK + 3W 45㎡/h

Technical Specifications

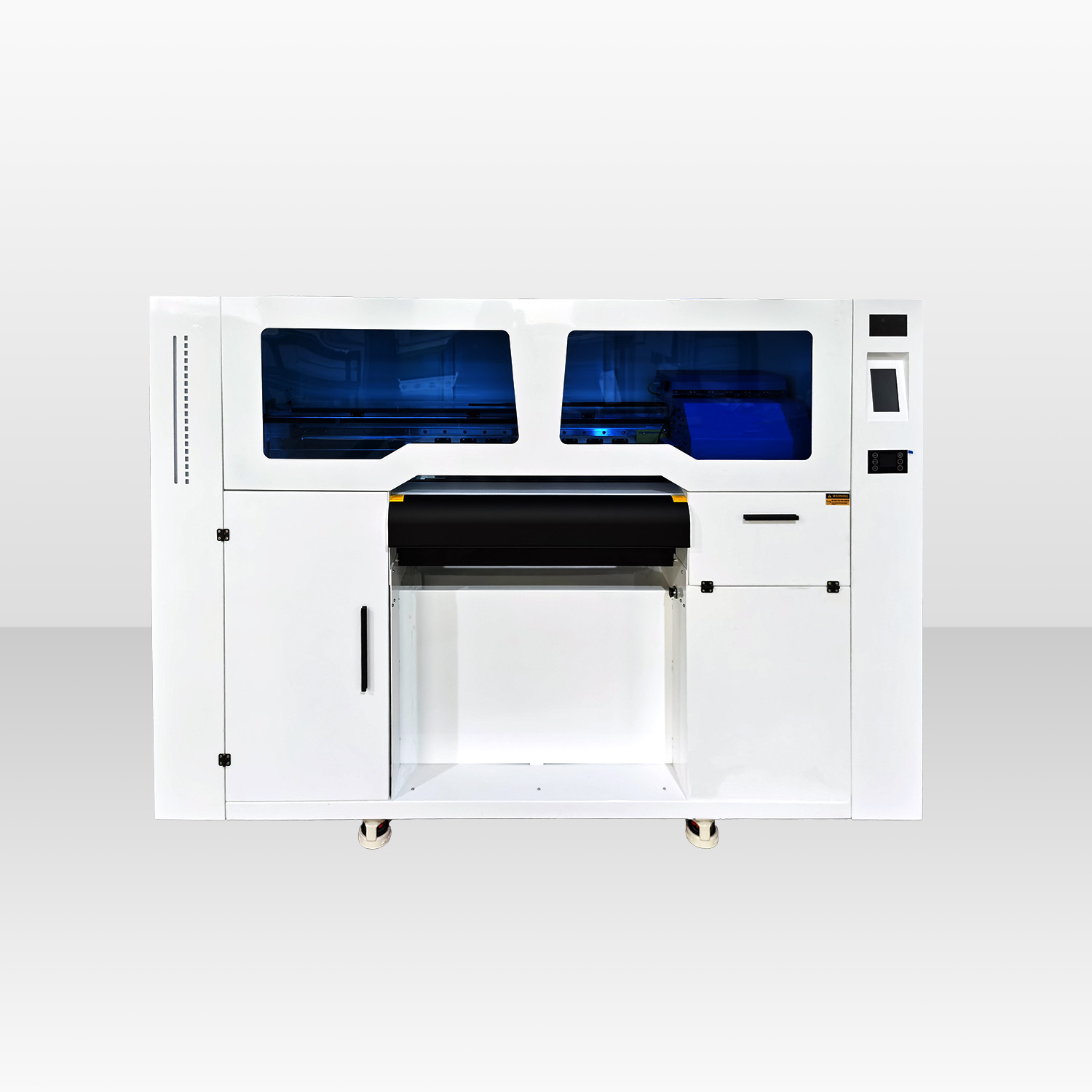

T-shirt Digital Heat Transfer Printing Machine
Model		YXP IN604 DTF Max
Print Head		4/6 Print Heads
Printing Technology		Piezoelectric Inkjet
Acceptable Media	Width	620 mm
Acceptable Media	Thickness	Maximum 39 mil(1 mm)
Printing Width		600 mm
Ink Cartridges	Type	Transfer Pigment Ink
	Capacity	Continual Ink Supply System ( 220ML )
	Color	Colors : CMYK/CMYK+RGBO
Applicable Medium		Transfer film
Color Manage		ICC or density curve
Media Heating System		Powder & color fixing machine
Interface		RJ-45/LAN
RIP Software		Main top & PhotoPrint
Power Supply		50HZ/60HZ, 220V/110V/10A
Environment	Temperature	15℃ to 28℃
Environment	Humidity	40% to 60%
Printer Dimensions(With Stand)		L1824mmW1004mmH1354mm
Packing Dimensions		L1980mmW930mmH1130mm
Weight		390kg

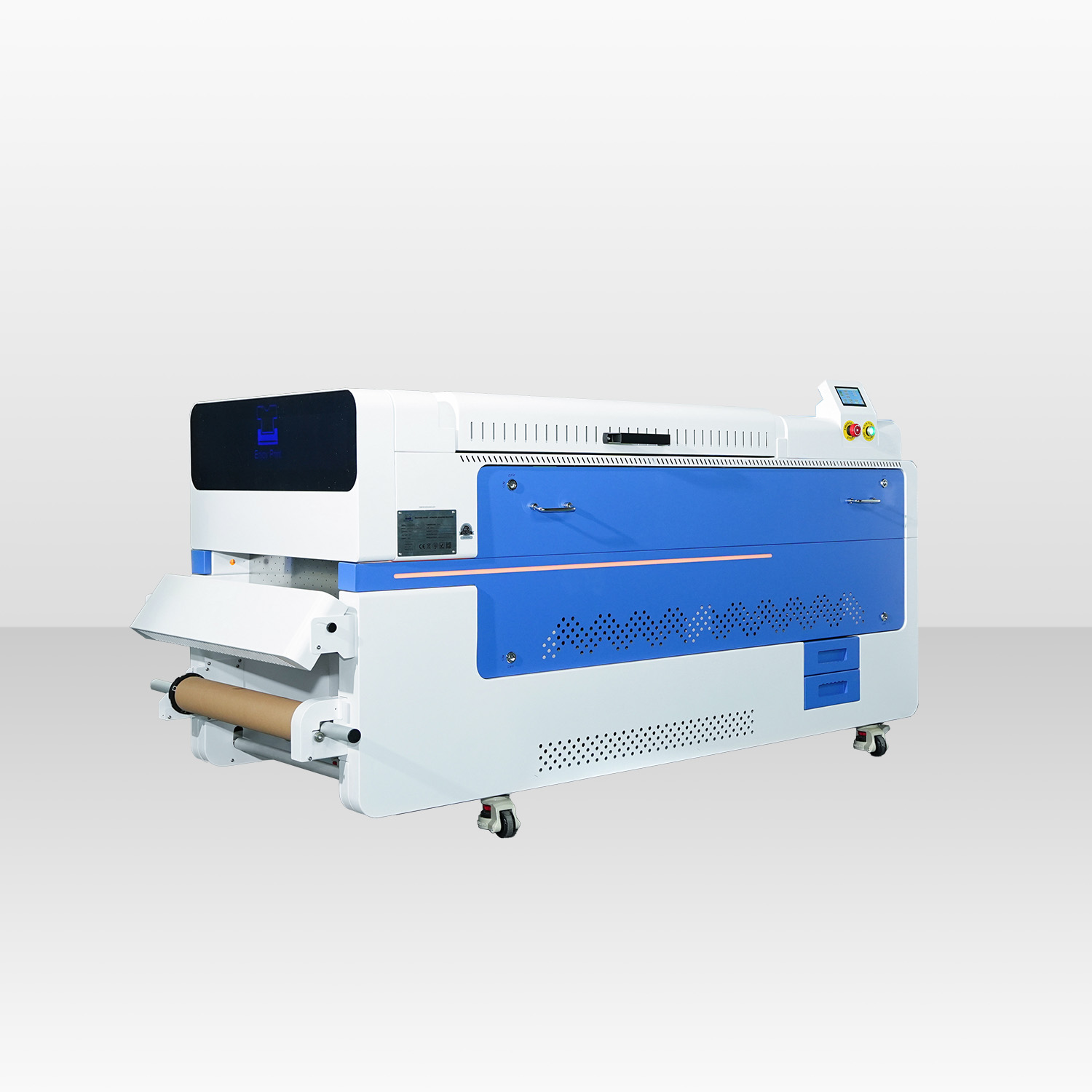

Shaking Powder and Color Fix Machine
Model	YXP IN604 DTF Max
Media Width	0-600mm
Applicable Medium	Nylon, Chemical Fiber, Cotton, Leather, Swimwear, Wetsuit, PVC, EVA, etc.
Powder Control	Powder shake control, powder control, powder direction and volume control
Heating & Drying Function	Multi-stage heating system, drying, cold air fan function
Rewind Function	Automatic induction winding
Electrical Parameters	Rated Voltage: 220V Rated Current: 20A
Electrical Parameters	Rated Power: 2KW Power Consumption: 1KW-2.5KW
Packing Size & Weight	227010901130mm 481kg
Powder Shaker Size	21808401020mm

Working Process

Working Process

Design Pattern

Use photoshop, illustrator or other software to design your pattern.

Print Your Design

The printer parameters in the RIP software and use our printer and ink to print your pattern.

Powdering

Turn on the switch of the powder shaking machine, the machine will automatically powdering, and dry and fix the color.

Heat Press

Use a heat press machine, set the temperature to 180 degrees, and time 15 seconds to transfer.

Required Accessories

Features

Feature of XYP IN604 DTF MAX
ENJOYPRINT DTF Super HIGH VOLUME DTF PRINTING SOLUTION

ENJOY PRINT DTF is carefully designed to reduce maintenance to a minimum. With popular RIPsoftware each print will be produced in a quality waybeyond any competition, but still ainkjet dtf every aspect of the printwill be optimized in order to make it cost effective.

• More Intelligent
• Low Maintenance
• High volume production
• Self preservation function
• More convenient operation
• With upgradeable options

Feature of XYP IN604 DTF MAX

Latest technology of DTF , Want some quality clothing shirt? Try our DTF Print, same as silkscreen.

Upgraded extended pinch roller for greater stability

Upgraded extended pinch roller for greater stability
4/6 heads base plate configuration for faster production operations

4/6 heads base plate configuration for faster production operations
High Capacity Ink Tanks,Equipped with 3-liter capacity ink tanks

High Capacity Ink Tanks,Equipped with 3-liter capacity ink tanks
Automatic Maintenance System, Automati cally configure the number of daily head cleanings, their duration and the type of cleaning: Strong, Medium or Soft

Automatic Maintenance System, Automati cally configure the number of daily head cleanings, their duration and the type of cleaning: Strong, Medium or Soft
Adjustable printhead base for easy installation and adjustment

Adjustable printhead base for easy installation and adjustment
Pre-drying the print platform for improved image quality

Pre-drying the print platform for improved image quality
Antistatic System, It incorporates 2 antistat ic modules in the printing carriage. It eliminates static on film, allows for maxi mum quality production with continuous tones

Antistatic System, It incorporates 2 antistat ic modules in the printing carriage. It eliminates static on film, allows for maxi mum quality production with continuous tones
Upgraded progress bar for real-time print progress monitoring

Upgraded progress bar for real-time print progress monitoring
Tension-controlled paper feed system for smoother paper feed

Tension-controlled paper feed system for smoother paper feed

Application

Applications of DTF Printer

Commonly used products such as T-shirts, hats, backpacks, lanyards, shoes and more to create unique fashion pieces. It can also be used in denim clothes, non-woven bags, gift bags, pearl clothing, baseball caps, fabric gift boxes, etc. Make your travel outfit unique.

✔ T-shirt ✔ Denim/Jeans
✔ Canvas ✔ Hoodies

✔ Backpacks. ✔ Lanyards

✔ Shoes ✔ Gift Bags

✔ Baseball Caps ✔ Fabric Gift Boxes
✔ Sweaters and more......

dtf printer inkjet printer film directly printing powder shaker printer digital dtf dtf film printing dtf powder shaker dtf printing dtg

DTF Accessories

DTF Accessories inculding DTF textile inks, DTF shaking powder and PET Film with high quality accessories for DTF printing with affortable price.

/DTF PET Films

DTF film can be transferred on a wide range of fabrics. Capable of printing to shirts, sweaters, hoodies, pullovers, canvas, denim, and more! Our DTF films have excellent ink absorption for high-precision printing. Use our film you will achieve high-quality, breathable, and smooth prints.
/ DTF Textile Printing Ink

DTF textile printing ink boasts excellent compatibility. You can directly print your designs on different textiles and fabrics using direct to Film Ink technology. ENJOYPRINT offers different colors of DTF inks such as C, M, Y, K, W, Lc, Lm, Re, Gr, Bl, Or and also fluorescence ink.
/ DTF Hot Melt Powder

Unlike DTG technology, DTF requires no pre-treatment.The most important factor is DTF Powder. DTF powders are specially designed to use with DTF printing process. Our DTF powders are slow drying and easy to cold tear. Which will help you get excellent transfer printing results.

Additional Value

Year Warranty

Within 1 year from the date of purchase, if the machine has non-man-made damage, you can enjoy free warranty service.
Online Technical Support

The expert team will serve you online and solve any problems you encounter for free.
Inkjet Printer Starter Kit

Starter kit pack including complete set of test inks, commonly used replacement parts，and the user's guide, installation Video Instructions.
Dealer' s Team Training

Regularly provide our dealers , technical training of new models, application solutions training, sales guidance training.
